Seamless pipe weight per meter

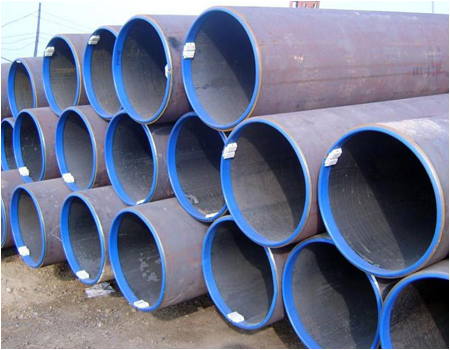

PIC-(Seamless pipe weight per meter)

Seamless pipe's theory weight

Size and Weight of Seamless Roll Steel Pipe
ASTM B36.10M-1996
Norminal pipe size		Outside Diameter		Sch 10			Sch 20			Sch 30
NPS	DN	in	mm	Wall thickness		kg/m	Wall thickness		kg/m	Wall thickness		kg/m
NPS	DN	in	mm	inch	mm	kg/m	inch	mm	kg/m	inch	mm	kg/m
1/8"	…	0.405	10.3	0.049	1.24	0.28				0.057	1.45	0.32
1/4"	…	0.540	13.7	0.065	1.65	0.49				0.073	1.85	0.54
3/8"	10	0.675	17.1	0.065	1.65	0.63				0.073	1.85	0.70
1/2"	15	0.840	21.3	0.083	2.11	1.00				0.095	2.41	1.12
3/4"	20	1.050	26.7	0.083	2.11	1.28				0.095	2.41	1.44
1"	25	1.315	33.4	0.109	2.77	2.09				0.114	2.9	2.18
1 1/4"	32	1.660	42.2	0.109	2.77	2.69				0.117	2.97	2.87
1 1/2"	40	1.900	48.3	0.109	2.77	3.11				0.125	3.18	3.54
2"	50	2.375	60.3	0.109	2.77	3.93				0.125	3.18	4.48
2 1/2"	65	2.875	73	0.12	3.05	5.26				0.188	4.78	8.04
3"	80	3.500	88.9	0.254	3.05	6.46				0.188	4.78	9.92
3 1/2"	…	4.000	101.6	0.292	3.05	7.41				0.188	4.78	11.41
4"	100	4.500	114.3	0.33	3.05	8.37				0.188	4.78	12.91
5"	125	5.563	141.3	0.455	3.4	11.56
6"	150	6.625	168.3	0.544	3.4	13.83	0.177	4.5	18.18
8"	200	8.625	219.1	0.786	3.76	19.97	0.250	6.35	33.32	0.277	7.04	36.82
10"	250	10.750	273	1.094	4.19	27.78	0.250	6.35	41.76	0.307	7.8	51.01
12"	300	12.750	323.8	1.417	4.57	35.98	0.250	6.35	49.71	0.33	8.38	65.19
14"	350	14	355.6	2.153	6.35	54.69	0.312	7.92	67.91	0.375	9.53	81.33
16"	400	16	406.4	2.466	6.35	62.65	0.312	7.92	77.83	0.375	9.53	93.27
18"	450	18	457	2.778	6.35	70.57	0.312	7.92	87.71	0.438	11.13	122.38
20"	500	20	508	3.903	6.35	78.56	0.375	9.53	117.15	0.5	12.7	155.13
22"	550	22	559	3.407	6.35	86.55	0.375	9.53	129.14	0.5	12.7	171.10
24"	600	24	610	3.722	6.35	94.53	0.375	9.53	141.12	0.562	14.27	209.65
26"	650	26	660	5.014	7.92	127.36	0.500	12.7	202.74
28"	700	28	711	5.406	7.92	137.32	0.500	12.7	218.71	0.625	15.88	272.23
30"	750	30	762	5.8	7.92	147.29	0.500	12.7	234.68	0.625	15.88	292.20
无缝轧制钢管的尺寸和重量				Size and Weight of Seamless Roll Steel Pipe
Norminal pipe size		Outside Diameter		STD			Sch 40			Sch 60
NPS	DN	in	mm	Wall thickness		kg/m	Wall thickness		kg/m	Wall thickness		kg/m
NPS	DN	in	mm	inch	mm	kg/m	inch	mm	kg/m	inch	mm	kg/m
1/8"	…	0.405	10.3	0.068	1.73	0.36	0.068	1.73	0.36
1/4"	…	0.540	13.7	0.088	2.24	0.63	0.088	2.24	0.63
3/8"	10	0.675	17.1	0.091	2.31	0.84	0.091	2.31	0.84
1/2"	15	0.840	21.3	0.109	2.77	1.26	0.109	2.77	1.26
3/4"	20	1.050	26.7	0.113	2.87	1.68	0.113	2.87	1.68
1"	25	1.315	33.4	0.133	3.38	2.5	0.133	3.38	2.5
1 1/4"	32	1.660	42.2	0.14	3.56	3.39	0.14	3.56	3.39
1 1/2"	40	1.900	48.3	0.145	3.68	4.04	0.145	3.68	4.04
2"	50	2.375	60.3	0.154	3.91	5.43	0.154	3.91	5.43
2 1/2"	65	2.875	73	0.203	5.16	8.62	0.203	5.16	8.62
3"	80	3.500	88.9	0.216	5.49	11.27	0.216	5.49	11.27
3 1/2"	…	4.000	101.6	0.226	5.74	13.54	0.226	5.74	13.54
4"	100	4.500	114.3	0.237	6.02	16.05	0.237	6.02	16.05
5"	125	5.563	141.3	0.258	6.55	21.73	0.258	6.55	21.73
6"	150	6.625	168.3	0.28	7.11	28.21	0.28	7.11	28.21
8"	200	8.625	219.1	0.322	8.18	42.47	0.322	8.18	42.47	0.406	10.31	53.09
10"	250	10.750	273	0.365	9.27	60.18	0.365	9.27	60.18	0.5	12.7	81.53
12"	300	12.750	323.8	0.375	9.53	73.72	0.406	10.31	79.71	0.562	14.27	108.93
14"	350	14	355.6	0.375	9.53	81.18	0.438	11.13	94.55	0.594	15.09	126.72
16"	400	16	406.4	0.375	9.53	93.1	0.500	12.7	123.31	0.656	16.66	160.13
18"	450	18	457	0.375	9.53	104.97	0.562	14.27	155.81	0.75	15.09	164.45
20"	500	20	508	0.375	9.53	116.93	0.594	15.09	183.43	0.812	20.62	247.84
22"	550	22	559	0.375	9.53	128.9				0.875	22.23	294.27
24"	600	24	610	0.375	9.53	140.86	0.688	17.48	255.43	0.969	24.61	355.28
26"	650	26	660	0.375	9.53	152.59
28"	700	28	711	0.375	9.53	164.55
30"	750	30	762	0.375	9.53	176.52
	无缝轧制钢管的尺寸和重量				Size and Weight of Seamless Roll Steel Pipe
Norminal pipe size		Outside Diameter		Sch80			XS			Sch 100
NPS	DN	in	mm	Wall thickness		kg/m	Wall thickness		kg/m	Wall thickness		kg/m
NPS	DN	in	mm	inch	mm	kg/m	inch	mm	kg/m	inch	mm	kg/m
1/8"	…	0.405	10.3	0.095	2.41	0.47	0.095	2.41	0.47
1/4"	…	0.540	13.7	0.119	3.02	0.8	0.119	3.02	0.8
3/8"	10	0.675	17.1	0.126	3.2	1.1	0.126	3.2	1.1
1/2"	15	0.840	21.3	0.147	3.73	1.62	0.147	3.73	1.62
3/4"	20	1.050	26.7	0.154	3.91	2.2	0.154	3.91	2.2
1"	25	1.315	33.4	0.179	4.55	3.24	0.179	4.55	3.24
1 1/4"	32	1.660	42.2	0.191	4.85	4.47	0.191	4.85	4.47
1 1/2"	40	1.900	48.3	0.2	5.08	5.41	0.2	5.08	5.41
2"	50	2.375	60.3	0.218	5.54	7.48	0.218	5.54	7.48
2 1/2"	65	2.875	73	0.276	7.01	11.41	0.276	7.01	11.41
3"	80	3.500	88.9	0.3	7.62	15.27	0.3	7.62	15.27
3 1/2"	…	4.000	101.6	0.318	8.08	18.64	0.318	8.08	18.64
4"	100	4.500	114.3	0.337	8.56	22.32	0.337	8.56	22.32
5"	125	5.563	141.3	0.375	9.53	30.97	0.375	9.53	30.97
6"	150	6.625	168.3	0.432	10.97	42.56	0.432	10.97	42.56
8"	200	8.625	219.1	0.5	12.7	64.64	0.5	12.7	64.64	0.594	15.09	75.92
10"	250	10.750	273	0.594	15.09	95.98	0.5	12.7	81.53	0.719	18.26	114.71
12"	300	12.750	323.8	0.688	17.48	132.05	0.5	12.7	97.44	0.844	21.44	159.87
14"	350	14	355.6	0.75	15.09	126.72	0.5	12.7	107.40	0.938	23.83	194.98
16"	400	16	406.4	0.844	21.44	203.54	0.5	12.7	123.31	1.031	26.19	245.57
18"	450	18	457	0.938	23.83	254.57	0.5	12.7	139.16	1.156	29.36	309.64
20"	500	20	508	1.031	26.19	311.19	0.5	12.7	155.13	1.281	32.54	381.55
22"	550	22	559	1.125	28.58	373.85	0.5	12.7	171.10	1.375	34.93	451.45
24"	600	24	610	1.219	30.96	442.11	0.5	12.7	187.07	1.531	38.89	547.74
26"	650	26	660				0.5	12.7	202.74
28"	700	28	711				0.5	12.7	218.71
30"	750	30	762				0.5	12.7	234.68

	无缝轧制钢管的尺寸和重量				Size and Weight of Seamless Roll Steel Pipe
Norminal pipe size		Outside Diameter		Sch120			Sch140			Sch160
NPS	DN	in	mm	Wall thickness		kg/m	Wall thickness		kg/m	Wall thickness		kg/m
NPS	DN	in	mm	inch	mm	kg/m	inch	mm	kg/m	inch	mm	kg/m
1/8"	…	0.405	10.3
1/4"	…	0.540	13.7
3/8"	10	0.675	17.1
1/2"	15	0.840	21.3							0.188	4.78	1.95
3/4"	20	1.050	26.7							0.219	5.56	2.9
1"	25	1.315	33.4							0.25	6.35	4.24
1 1/4"	32	1.660	42.2							0.25	6.35	5.61
1 1/2"	40	1.900	48.3							0.281	7.14	7.25
2"	50	2.375	60.3							0.344	8.74	11.11
2 1/2"	65	2.875	73							0.375	9.53	14.92
3"	80	3.500	88.9							0.438	11.13	21.35
3 1/2"	…	4.000	101.6									0
4"	100	4.500	114.3	0.438	11.13	28.32				0.531	13.49	33.54
5"	125	5.563	141.3	0.5	12.7	40.28				0.625	15.88	49.12
6"	150	6.625	168.3	0.562	14.27	54.21				0.719	18.26	67.57
8"	200	8.625	219.1	0.719	18.26	90.44	0.812	20.62	100.93	0.906	23.01	111.27
10"	250	10.750	273	0.844	21.44	133.01	1.000	25.4	155.10	1.125	28.58	172.27
12"	300	12.750	323.8	1	25.4	186.92	1.125	28.58	208.08	1.312	33.32	238.69
14"	350	14	355.6	1.094	27.79	224.66	1.250	31.75	253.58	1.406	35.71	281.72
16"	400	16	406.4	2.219	30.96	286.66	1.438	36.53	333.21
18"	450	18	457	1.375	34.93	363.58	1.562	39.67	408.28
20"	500	20	508	1.5	38.1	441.52	1.750	44.45	508.15
22"	550	22	559	1.625	41.28	527.05	1.875	47.63	600.67
24"	600	24	610	1.812	46.02	640.07	2.062	52.37	720.19
	无缝轧制钢管的尺寸和重量				Size and Weight of Seamless Roll Steel Pipe
Norminal pipe size		Outside Diameter		XXS			All the weight is by theory weight. Considering the tolerance of the standard pipes the actual weight should have difference.
NPS	DN	in	mm	Wall thickness		kg/m
NPS	DN	in	mm	inch	mm	kg/m
1/2"	15	0.840	21.3	0.294	7.47	2.55
3/4"	20	1.050	26.7	0.308	7.82	3.64
1"	25	1.315	33.4	0.358	9.09	5.45
1 1/4"	32	1.660	42.2	0.382	9.7	7.77
1 1/2"	40	1.900	48.3	0.4	10.15	9.55
2"	50	2.375	60.3	0.436	11.07	13.44
2 1/2"	65	2.875	73	0.552	14.02	20.39
3"	80	3.500	88.9	0.6	15.24	27.68
3 1/2"	…	4.000	101.6
4"	100	4.500	114.3	0.674	17.12	41.03
5"	125	5.563	141.3	0.75	19.05	57.43
6"	150	6.625	168.3	0.864	21.95	79.22
8"	200	8.625	219.1	0.875	22.23	107.93
10"	250	10.750	273	1	25.4	155.10
12"	300	12.750	323.8	1	25.4	186.92

Seamless pipe's theory weight

Detail Thickness of pipes
Carbon steel fluid pipe tolerance.
